How to Make a Projector for Your Phone using Shoe box and Magnifying glass

How to Make a Projector for Your Phone - Shoebox projector

Cheap & Easy

make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com

Today I am going to guide you to Make a Projector with Your SmartPhone,a Shoe Box and a Magnifying Glass.The project is so easy & cheap.And You can make your own Projector in less then 30minutes.A phone based projector is a great way to show off your mobile photos and Videos.A projector provides a new way of looking at your shots, and videos.
A projector or image projector is an optical device that projects an image (or moving images) onto a surface, commonly a projection screen.Most projectors create an image by shining a light through a small transparent lens, but some newer types of projectors can project the image directly, by using lasers.
As you know that Slide projectors are great but outdated. And digital projectors cost a bundle.
You can Read More About projector here-Projector - Wikipedia, the free encyclopedia
And About Magnifying Glass and its working Go Here
  • Requirements:-
How-to-make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com
  1. Smart phone
  2. Shoe box
  3. Magnifying glass, or a large aperture lens
  4. Art & Craft knife or similar
  5. Tape or glu gun
  6. A paper clip for Phone stand.

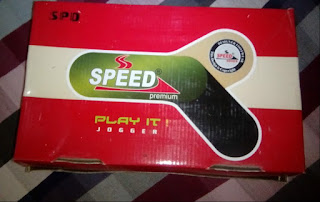

Step 01:- Take a Shoe box and Trace the outer edge of your lens or magnifying glass onto one of the short sides of the box.
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com
Step 02:- Cut a Hole in That Box Cut out the inside of the circle you just traced.You don’t want light leaking around your lens so try not to cut too much.At the opposite side of the hole, cut a small hole for cords and audio.

Step 03:- Attach Your Lens Now.If your magnifying glass has a handle, you may want to remove it first or you can make a arrangement as i did view in the image.
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com
Step 04:- Make a Stand with the help of this very helpful tutorial to Make a stand for our phone out of a paper clip-Instructable.In my case Flip Cover did the job of a Stand.

Step 05:-  When light passes though a lens (including the lenses in your eyes), it gets flipped, which means the picture from your projector will come out upside down.As you can clearly see in the picture below .You can read more about it Here
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com.
You can fix this problem with following steps:-
In iPhone Go to Settings > General > Accessibility and turn on Assistive Touch.Once activated, a little white orb will pop that you can drag around the screen.Click on the orb and go to Device > Rotate Screen.This will allow you to flip applications like the Photos app which would normally rotate itself right side up.

For Andriod Users can download the app Ultimate Rotation Control.

Ultimate Rotation Control - Android Apps on Google Play

Rating: 4 -13,157 votes Price- ‎Free
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.commake-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com
Step 06:- If Your wall is clean then it will be great but If your walls are plastered with pics & Posters  then you will need to clear out a little space for your projection.

Step 07:-Now Position your phone in its stand near the back of the box and move it forwards or backwards slowly until your image starts to come into focus and clear.Once you’ve found a good range you can fine tune focus by moving your phone forwards or backwards in the box.Now fix the Position of the Stand or Mark the position with marker.
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com



Step 08:- At Last turn the screen brightness of your phone all the way up and turn the room lights down.
Step 09:-Now connect audio jack or speaker's wire through the hole you cut in the back of the box(in step 02).



 Result Of Hard Work
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.commake-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com
make-a-projector-with-a-smartphone-and-shoe-box-www.androroot.com

  • Some Tips To Get Better Result

  1. If the inside walls of your box are of a bright color, you may want to spray paint them black or tape up some black paper for best image quality.
  2. Turn the Screen Brightness of your Higher as possible.
  3. Use a tablet or a bigger screen.
  4. Arrange a Projection screen.
  5. You can use a Camera lens.
 So With the Help of Above Steps You can also Make a Projector With Your SmartPhone,a Shoe box and a Magnifying Glass easily so make it fast and enjoy your mobile photos and Videos on a bigger screen.
